Meticulously designed for industrial and commercial efficiency, representing top tier durability, high quality components, and peak output capability.

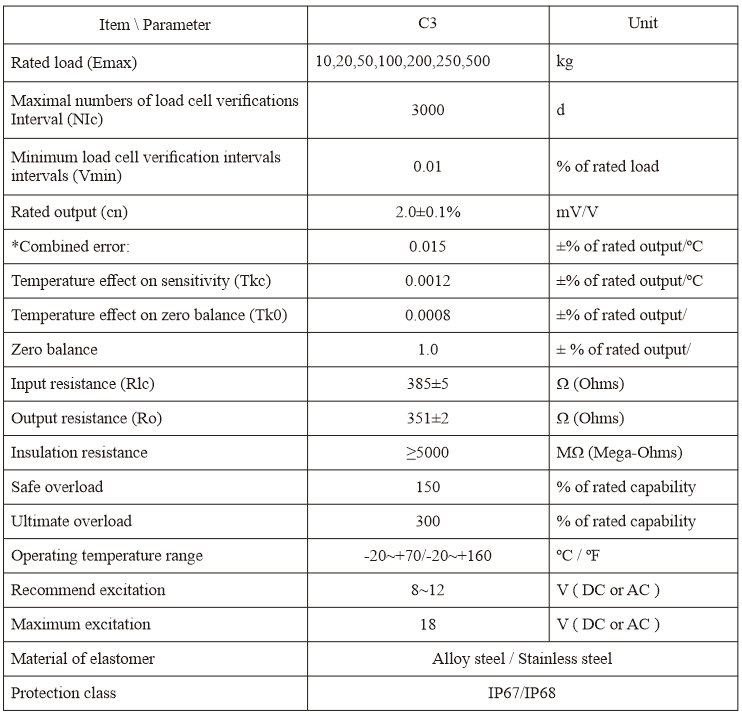

Capacities (Emax) :10,20,50,100,200,250,500
Accuracy Class : C3 OIML R60
Ouput : 2.0mV/V Digital: 1,000,000d.
Execution standard : GB/T 7551-2008 Certificate (eqv OIML R60) Combined error : 0.015%
Material of elastomer : Alloy steel or stainless steel.
Sealed to IEC 529 : Protection grade: Ip67 or Ip68. Protection against total immersion in water for 30 minutes at a pressure corresponding to a 1 m head of water
Electrical Termination
4 core cable standard lengths
0.5~3t: 3m,5~8t: 7m, 10t: 9m, 20t: 12m.
Diamter: Φ 6
Connection :

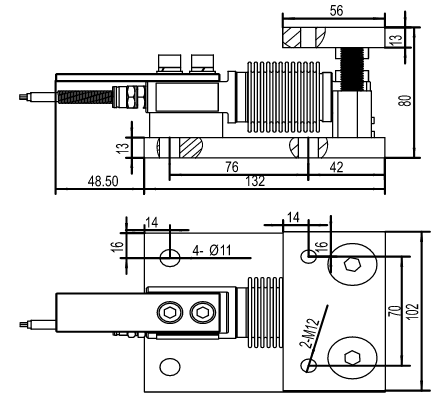

Refer to the foliowing drawing.
